by Chris Woodford. Last updated: August 1, 2020.
No runway, no problem—have helicopter, will
travel! Igor Sikorsky (1889–1972), father of the modern chopper, had no doubt at
all about the brilliance of this amazing, flying machine, which he
said was the closest thing to "fulfillment of mankind's ancient
dreams of the flying horse and the magic carpet." Jet planes are
wonderful for screaming us from one side of the planet to the other.
But when it comes to tricky rescue missions—plucking stranded
sailors from the sea, hurling tubs of water onto forest fires,
plucking engineers off wind turbines, dashing the critically injured
to hospital—nothing beats a chopper. According to science
historians, inventors had been trying to develop flying machines
with spinning rotors for over 2000 years before Sikorsky
finally built the world's first practical helicopter in 1939.
Why did it take so long? Because helicopters are incredibly
complex machines—miracles of intricate engineering that take
real skill to fly. How exactly do they work? Let's take a closer look!
Photo: The US Navy's largest helicopter: the CH53-E Sikorsky Super Stallion.
A newer version, the CH-53K, is currently under development and expected to cost about $100 million per helicopter!
Picture by Joshua Adam Nuzzo courtesy of US Navy.
How does a helicopter stay in the air?
The science of a helicopter is exactly the same as
the science of an airplane: it works by generating lift—an upward-pushing force that overcomes its weight and sweeps it into the air. Planes make
lift with airfoils (wings that have a curved cross-section). As they
shoot forwards, their wings change the pressure and direction
of the oncoming air, forcing it down behind them and powering them up
into the sky: a plane's engines speed it forward, while its wings fling
it up. The big problem with a plane is that lots of air has to race
across its wings to generate enough lift; that means it needs large
wings, it has to fly fast, and it needs a long runway for takeoff and
Photo: Mighty rotors: You can see just how big and heavy a helicopter's rotors are in this picture. It takes four US marines to hold this rotor in place while it's being reattached after maintenance. Notice the curved front edge of the rotor blade that cuts like an airfoil as it spins around.
Picture by Jeremy L. Grisham courtesy of US Navy.
Helicopters also make air move over airfoils to generate
lift, but instead of having their airfoils in a single fixed wing,
they have them built into their rotor blades, which spin around at high
speed (typically about 400–500 RPM on a small helicopter or about 225 RPM
on a huge Chinook, with the speed depending on the
width or "cord" of the blades). The rotors are like thin wings, "running" on the spot,
generating a massive downdraft of air that blows the helicopter
upward. With skillful piloting, a helicopter can take off or land
vertically, hover or spin on the spot, or drift gently in any direction—and you
can't do any of that in a conventional plane.
Key parts of a helicopter
A typical helicopter has thousands of intricate
components, but we only need to worry about a handful of the bigger
bits. The main framework is called the fuselage and it's typically
made from strong but relatively lightweight composite materials. It contains one or two engines, a transmission, and gearboxes, which power one or two main rotors and a much smaller tail rotor at the back.
Artwork: A quick summary of the essential, mechanical parts of a helicopter.
Each rotor blade (1) is connected to the hub (2) and rotating mast by a feathering hinge (3),
which allows it to swivel. A pitch link (a short rod) attached to each blade (4, orange) can tilt it to a steeper or shallower angle according to the position of the rotating upper swash plate (5, blue),
which spins on bearings around the static lower swash plate (6, red). That's how a chopper hovers and steers and it's described in more detail later in this article. The two swash plates are moved up and down or tilted to the side by the pilot's cyclic and collective cockpit controls (not shown), which are explained below. The rotor is powered by a driveshaft (7) connected to a transmission and gearbox (8, red). The same transmission powers a second, longer driveshaft (9, yellow) connected to a gearbox that spins the tail rotor (10, orange). The power from both rotors comes from one or two turboshaft jet engines (11).
Photo: Helicopter engine: Look under the rotor of this Seahawk helicopter. The long, gray tube between the two sets of numbers ("69") is a turboshaft jet engine. There's a second engine exactly the same on the other side.
Photo by Trevor Kohlrus courtesy of US Navy.
Although some small helicopters still use piston
engines (also called reciprocating engines, similar to the ones used
in cars and trucks), most now use gas turbines more
like the jet engines on conventional airplanes.
Turbine engines are smoother in operation (vibrating much less), more powerful, less mechanically
complex, and more reliable. Some helicopters have a single engine
mounted horizontally, underneath and just behind the rotor;
most small Bell helicopters, for example, work like this.
Others have one engine mounted either side of the rotor mast;
military Seahawk and Apache helicopters are powered this way.
Most modern choppers have turboshaft engines, which are similar to normal jet engines on airplanes. However,
instead of squirting out a hot jet of exhaust gas that thrusts them
forward, they use the energy from the burning gas to spin a central
turbine and driveshaft that powers the transmission (the
mechanism that allows the engine to power the rotors).
Our main article on jet engines tells you more about how turbojet engines work.
The huge spinning rotor is the single most
noticeable feature of any helicopter, but no chopper can get by with
just one rotor. Why? A basic principle of physics called
Newton's third law of motion tells us that when a force (called an action)
makes something move, another force, just as big (called a reaction),
makes something else move in the opposite direction; action
and reaction are equal and opposite is another way of putting it. As
a helicopter rotor spins around (the action), the entire body of the craft tends to rotate
somewhat more slowly in the opposite direction (the reaction). Left
to its own devices, this torque (turning force) would make a
helicopter completely uncontrollable, so we have to counteract it in
some way with what's called counter-torque (a turning force in the
opposite direction). One solution is to have a second large rotor
spinning the other way. Sometimes this is mounted on the
same mast as the first rotor (a design called a coaxial rotor);
sometimes, as in the huge military Chinook helicopters, there's a
large rotor at either end of the craft (a design called a tandem rotor).
Photo: Tandem rotor: This military Boeing CH-47 Chinook has one rotor at the front and one at the back and they spin in opposite directions to cancel one another's torque.
Photo by Tamara Vaughn courtesy of US Navy.
The blades of a helicopter's main rotor come in
three basic kinds that allow increasing amounts of movement as they
spin around: they're called rigid, semi-rigid, and fully articulated.
As the name suggests, rigid blades are firmly attached to the rotor
hub (the "wheel" to which the blades are fixed at the top of the
spinning rotor mast) by a swiveling connection called a
feathering hinge (or pitch hinge). This allows them
to "feather" (swivel as they rotate, which, as we'll discover in a moment, is how a helicopter
steers). Semi-rigid blades have the same feathering hinge, but they
also have a teetering hinge (or flapping hinge) that lets them flap up and down. Fully
articulated blades can feather and flap, and they also have a third
hinge (a drag hinge) that allows them to move slightly ahead of ("lead") or behind
("lag") their normal position. Each of these blade types has advantages and drawbacks.
Photo: The tail rotor of a Seahawk helicopter. The tail rotor is driven by a drive shaft running back from
the main engines, parallel to the body of the helicopter. If you look closely, you'll see that the blades of the rotor can be tilted by the pilot as they spin around, which generates more or less pushing force and gives the helicopter the ability to rotate on the spot as it hovers. Picture by James R. Evans courtesy of US Navy.
Apart from adding a second large rotor, another
way to counteract the torque from the main rotor is by using a small,
sideways-pointing propeller called a tail rotor, powered by a
driveshaft from the engine that runs through the tail end of the craft.
Sometimes, for safety reasons, the tail rotor is built right inside
the tail (a design called a fenestron or fan-tail). Another alternative is
called a NOTAR® ("no tail rotor"), which uses a
jet of air, fired through a vent on the tail, to counteract the main
rotor torque instead. If a helicopter has a single main rotor blade,
it has to have a tail rotor, fenestron, or NOTAR or it can't fly
safely; similarly, any damage to the tail rotor—such as a bird
strike or missile hit—makes a copter dangerously uncontrollable and usually
results in it crashing quite quickly afterward. Most helicopters have
a vertical tail fin (pylon) that also helps to counteract some
of the torque from the main rotor.
How does a helicopter hover and steer?
A helicopter's rotors are ingenious things that
allow it to hover in mid-air or steer in any direction. The pilot has
five basic movement and steering controls: two hand levers called the
collective and cyclic pitch, a throttle, and two foot pedals. Most
maneuvers that a pilot executes involve a complex interplay between
these different controls, which is why flying a helicopter requires
such skill and concentration.
As they start to spin around, the airfoils on the
rotor blades generate lift that overcomes the weight of the craft,
pushing it up into the air. If the lift is greater than the weight,
the helicopter climbs; if it's less than the weight, the helicopter
falls. When the lift and the weight are exactly equal, the helicopter
hovers in mid-air. The pilot can make the rotor blades generate more
or less lift using a control called the collective pitch (or
"collective"), which increases or decreases the angle ("pitch")
that all the blades make to the oncoming air as they spin around. For
takeoff, the blades need to make a steep angle to generate maximum
Artwork: How a helicopter hovers and steers: Top drawing: The collective pitch control changes the angle (or pitch) of each of the rotor blades by the same amount at the same time (green arrows)—in other words, collectively. If the blades make a steeper angle, they generate more lift so the entire craft moves straight upward (orange arrow). Bottom drawing: The cyclic pitch control changes the angle of selective rotor blades as they spin, so (in this case) whichever blade is on the left always produces slightly more lift, while the opposite blade (shown here on the right) always produces slightly less lift. That means more lift is produced on the left side of the helicopter, so the overall lift (orange arrow) is tilted to the right, steering the entire helicopter in that direction.
How does that happen? As we've already seen, the
main rotor is connected to the hub at the top of the mast by a
feathering hinge that allows each blade to swivel as it spins, so it
makes a steeper or shallower angle to the oncoming air. The blades
have short vertical rods (pitch links) attached to them that
are connected to a rotating metal disc called a swash plate, a
bit lower down the mast. This swash plate slides on bearings around a
second, similar plate directly underneath that doesn't rotate. When
the pilot moves the collective one way, both swash plates move
upward, pushing up on the pitch links that tilt the rotor blades to a
steeper angle. Moving the collective the other way moves the swash
plates back down, pulling on the pitch links and tilting the blades
to a shallower angle.
At the end of the collective, there's a throttle
connected by a cable to the engine. This is like the accelerator of a
car or the throttle of a motorbike, increasing or decreasing the
engine speed so the rotor makes more or less lift.
The rotors also provide the steering for a
helicopter by making more lift on one side than the other. They do
this by swiveling back and forth (feathering) as they rotate, so, for example, they
make a steeper angle when they're on the left side of the craft than
when they're on the right. That means they generate more lift on the
left, tilting the craft over to the right and steering it in that
direction. The pilot steers like this using a second lever called the
cyclic pitch (also known as the "cyclic stick" or just
"cyclic"), similar to a joystick, which makes the blades swivel
as they cycle around. The ingenious swash plate mechanism translates
the pilot's movements into appropriate movements of the rotor blades.
Suppose the pilot wants to fly to the right. First, she moves the cyclic to the right,
and a system of connected levers makes the two swash plates tilt to the right as
well. This makes the rotor blades tilt to a steep angle when they're on the left
and a shallow angle when they're on the right, so the rotor produces more lift on
the left hand side, steering the craft to the right.
Artwork: How the swash plate steers a helicopter. In the center, you can see a simplified view of the swash plate mechanism. There are two discs at the top of the rotor mast, an upper one (red) that rotates on ball bearings (orange) around a lower one (blue) that doesn't rotate at all. Four pitch links (green) connect the upper swash plate to the rotor blades. Now suppose you want to fly to the right. You tilt the cyclic in that direction. That tilts both swash plates over to the right. As the rotor blades rotate, the tilted swash plates force the pitch links up when they're on the left and down when they're on the right. That makes each rotor blade tilt to a steeper angle when it's on the left and a shallower angle when it's on the right. This produces more lift on the left, steering the chopper to the right.
The pilot can also steer the nose of a helicopter
in a certain direction using a pair of foot controls, known as
antitorque pedals, which change the pitch of the tail rotor
blades so they make more or less sideways thrust than in normal
straight flight. That makes the entire craft rotate slowly clockwise
or counterclockwise so it heads in a different direction.
On tandem rotor helicopters like the Chinook, which have no tail rotor,
the foot pedals tilt the swashplates for the front and back rotors in opposite ways, steering
the craft accordingly.
How helicopter rotors work
Everyone knows a helicopter's rotors rotate (that's why they're called rotors).
But the really clever thing about them is that the blades can swivel back and forth
as they turn around—and that requires some amazingly intricate machinery.
It's easy to mimic a helicopter with your arms and your body's hidden structure makes the movements seem easy.
Stand up with your arms outstretched horizontally. Rotate your whole body slowly on the spot.
As you're turning around, swivel your arms at the shoulders. That's roughly what a helicopter
does with its blades, except that it does it about 3–4 times each second as the blades
are spinning round!
Photo: A US Navy engineer checks the rotor assembly on a Seahawk helicopter.
Picture by Kathaleen A. Knowles courtesy of US Navy
with annotations by Explain that Stuff.
Here are the main bits that make it work:
- The blades are shaped like airfoils (airplane wings with a curved profile) so they generate lift as they spin.
- Each blade can swivel about a feathering hinge as it spins.
- Vertical pitch links push the blades up and down, making them swivel as they rotate. The pitch links move up and down
according to the angle of the swash plates.
- The rotor mast (a central axle connected to the engine by the transmission) makes the entire blade assembly rotate.
- The rotor hub cap (above the rotors) helps to reduce aerodynamic drag.
- There are two turbo-shaft jet engines, one on either side of the rotors. If one engine fails, there should still be enough power from the other engine to land the helicopter safely.
Photo: An engineer repairs the amazingly intricate and complex rotor mechanism of a Seahawk, viewed here from
directly above. The engines are the two open cones on either side. You can also see two of the rotor blades
folded back along the fuselage (and pointing upward in this picture), which means the Seahawk can be parked on aircraft carriers
in much less space. Photo by Oliver Cole courtesy of US Navy.
How Sikorsky designed the modern helicopter rotor
All this sounds ingenious—and it is! The person who made it possible was brilliant Russian-born
inventor Igor Sikorsky. Here are two of his original helicopter design drawings, taken from the patent
for a Direct Lift Aircraft (helicopter) he filed in June 1931:
Artwork: Igor Sikorsky's original patent drawings, with colors and annotations added for clarity. From US Patent #1,994,488: Direct Lift Aircraft, courtesy of US Patent and Trademark Office.
Notice how similar the mechanism is to what we find on a modern helicopter? The patent is extremely detailed and quite complex
(you can check it out for yourself), so I've removed most of the labels and numbers and highlighted just a few key features:
- There's an aileron at the end of each rotor blade, shown in orange.
- The ailerons can be tilted (as they rotate) by the blue rods.
- There are two main rotor blades (which Sikorsky referred to collectively as the "lift propeller."
- The entire rotor blades can swivel on the green rods and can also be tilted as they rotate.
- The main rotor blade rotates around a central hub (yellow) with an engine beneath it.
- A single engine powers both the main rotor blade and the tail rotor. One of Sikorsky's key innovations was to produce a helicopter that needed only one main rotor blade, with a tail rotor to balance it, for reasons discussed below. As Sikorsky noted in his patent, having only one rotor means a helicopter is "light in weight, simple to construct, and cheap to produce"—three powerful advantages over earlier designs!
Advantages and disadvantages of helicopters

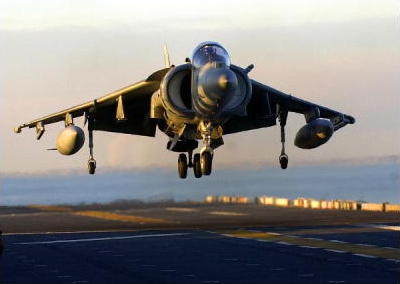

Photo: Alternatives to a helicopter#1: Vertical/Short Takeoff and Landing (V/STOL) aircraft, like
the famous Harrier, shown here, try to combine the maneuverability of a helicopter with the speed of a plane.
A Harrier can hover because, unlike a traditional jet engine, it has four extra nozzles
on the side that can swivel around to direct the engine's exhaust gases straight downward.
Picture by Staci Bitzer courtesy of US Navy.
Choppers have lots of advantages over planes. You don't
need a runway, for starters, or big wings, and you can
operate helicopters more easily from ships. From the center of a city to the middle of a
jungle, you can take off or land more or less anywhere. You can pause, mid-flight, to rescue someone,
pick up a load, or drop it off with a winch. Admittedly, you can't usually fly as fast or as far as a plane,
or carry as many people or as much cargo, but you have much more flexibility in where you can go.
Unfortunately, this versatility comes at a price: helicopters with
spinning rotors are mechanically more complex than planes with static
wings, more prone to failure, need more maintenance, and are expensive
to operate. Since you can fly a helicopter in all kinds of ways—it's effectively several
different flying craft all rolled into one—you might think piloting a chopper is
automatically harder than flying a plane. But there's no real comparison,
because they're two totally different things.
Photos: Alternatives to a helicopter#2: Bell Boeing's V-22 Osprey has huge rotors at the front that can be tilted to point upward (like a helicopter)
or forward (like a plane), combining the advantages of both in a single aircraft.
Photos (left to right) by Andy M. Kin,
and Zachary L. Borden,
all courtesy of US Navy.
A brief history of helicopters
“A flying machine offering reasonable speed and which would be controllable and safe, also combining take‐off and landing ability in a small area, would be of great value and would be, unquestionably, in considerable demand.”
Igor Sikorksy, 1930
- 400BCE: A Chinese book reveals how to make a
"flying top" helicopter toy using spinning feathers attached to
the end of a stick. You spin the stick quickly between your hands,
hurl it into the air, and the feathers make it fly.
- 1483: Italian inventor Leonardo da Vinci
(1452–1519) designs a helicopter with corkscrew-shaped propeller
blades to pull it up through the air. He doesn't build it, however.
- 1754: Russian engineer Mikhail Lomonosov (1711–1765) builds a
small working model showing how a gear mechanism can drive a pair of
coaxial, counter-rotating helicopter blades.
- 1796: British aircraft pioneer
Sir George Cayley
(1773–1857) builds spring- and elastic-powered models of helicopters
that fly to impressive heights (tens of meters). Later, in 1843, he
sketches plans for a full-scale helicopter with two rotors, but the
engines available at that time are much too heavy to power it.
- 1880s: American inventor genius Thomas Edison
(1847–1931) experiments with model helicopters, including some driven
by electricity, his favorite source of power.
- 1901: Igor Sikorsky (1889–1972), a Russian aircraft engineer, builds himself a working model helicopter powered
by a rubber band. It's the beginning of a life's obsession with
helicopters—one that will change the world.
- 1904: Frenchman Charles Richet (1850–1935) builds
a small helicopter, but it doesn't carry a pilot.
- 1907. Frenchman Louis Breguet (1880–1955), a
student of Charles Richet, and his brother build a quadrotor
helicopter (the Breguet-Richet gyroplane) with a rotor at each
corner. It can fly about a meter off the ground for a minute or so at
a time. Later the same year, another Frenchman, Paul Cornu
(1881-1944), builds a small helicopter that can lift off for about 20
- 1916: Hungarian-born aerodynamic genius Theodore von
Kármán (1881–1963) helps to design a helicopter called the Petróczy,
Kármán and Žurovec-1 (PKZ-1), driven by an
electric motor, that
proves powerful enough to lift three men.
- 1920: Spaniard Juan de la Cierva (1895–1936)
invents the autogyro, a small, flying airplane with a rotor on top.
- 1931: After many years of experimenting, Igor
Sikorsky designs and patents a practical, working helicopter. He
finally builds and flies a version of it, the VS-300, in 1939.
- 1942: Sikorsky's R-4 becomes the world's first mass-produced helicopter.
- 1945: Frank Piasecki (1919–2008) pioneers the revolutionary tandem-rotor helicopter. His original version is nicknamed the Flying Banana and eventually evolves into the Chinook.
- 1946: Bell Aircraft introduces the Model 47, designed by Arthur Young (1905–1995), the world's first commercially successful helicopter.
- 1950–1953: Helicopters demonstrate their true military potential for the first time during the Korean War.
- 1951: Charles Kaman builds the K-225, the first gas-turbine engined helicopter. Three years later, he builds the
first twin-turbine helicopter, the HTK-1, for the US Navy.
- 1961: Boeing's fast, cargo-carrying tandem rotor
CH-47 Chinook helicopter makes its maiden flight (entering production the following year). It can manage loads of up to 10 tonnes.
- 1964: Frenchman Paul Fabre of Sud Aviation develops the fenestron.
- 1967: Two Sikorsky S-61R helicopters make the
first ever non-stop, transatlantic flight from New York City to
Paris, France in a time of 30 hours 46 minutes.
- 1981: NOTAR® (no tail rotor) is tested for the first time on a Hughes OH-6A helicopter.
- 1988: Bell-Boeing begins production of its V-22
Osprey, a tilt-rotor aircraft that can take off like a helicopter but
fly like a plane.
- 1989: The McDonald Douglas 520N, the first mass-produced NOTAR® helicopter, makes its maiden
flight on December 28, 1989.
If you liked this article...
... you might like my books. My latest one is
Breathless: Why Air Pollution Matters and How it Affects You.
Find out more
On this website
On other websites
Technical—for older readers
- Principles of Helicopter Flight by Walter J. Wagtendonk. Aviation Supplies & Academics, 2006/2015. A detailed introduction to how helicopters work and how to fly them, written by a retired New Zealand flight instructor.
- Learning to Fly Helicopters by R. Randall Padfield. McGraw-Hill Professional, 2014. A pilot's manual, but also a great technical guide to exactly how helicopters work (and why they stay in the sky).
Historical—for older readers
- Helicopters: An Illustrated History of their Impact by Stanley S. McGowen.
ABC-CLIO, 2005. A detailed history of helicopters, starting with Leonardo and ending with tilt-rotor and NOTAR copters. Quite text-heavy, though with plenty of facts and specifications of important craft.
- The Sikorsky Legacy by Sergei I. Sikorsky. Arcadia Publishing, 2007. A mainly pictorial history of Igor Sikorsky's contribution to helicopter flight by his son, with many photos from the company archives.
For younger readers
- The Science of Flight: The Air-Mazing Truth about Planes and Helicopters by Ian Graham. Scholastic, 2019. A 32-page introduction for ages 8–11.
- Helicopters by Emily Bone. Usborne, 2016. A meaty 80-page introduction that mixes history, how-it-works details, and comic strips, best for children under 10.
- Helicopters by Mark Dartford. Lerner Publications, 2003. A basic 48-page introduction for ages 8–10, covering the history of helicopters, a little of the science, and how helicopters are used in different ways.
- Air and Space Travel by Chris Woodford. Facts on File, 2004. One of my own books, this is a longer (96-page) guide to the history of human flight, from gliders and balloons through planes and helicopters to space rockets. Suitable for ages 9–12.
- Mars Is About to Have Its 'Wright Brothers Moment' by Kenneth Chang. The New York Times, June 23, 2020. Can NASA build a helicopter that works in the thin atmosphere of Mars?
- Helicopters Go Electric: Electric flight takes on the final frontier by David Schneider. IEEE Spectrum, Dec 28, 2011. The entertaining story of the race to build a fully electric chopper.
- The Fastest Helicopter on Earth by Thomas Lawrence and David Jenney. IEEE Spectrum, Aug 31, 2010. A Sikorsky engineer describes the technical challenge of building helicopters that can fly closer to airplane speed.
- What Verne Imagined, Sikorsky Made Fly by Bill Ryan. The New York Times, May 7, 1995. Looking back on Sikorsky's contributions to powered flight.
- Igor Sikorsky, Helicopter. Pioneer, Dies by Alden Whitman. The New York Times, October 27, 1972. Sikorksy's obituary from the Times archive.
Please do NOT copy our articles onto blogs and other websites
Articles from this website are registered at the US Copyright Office. Copying or otherwise using registered works without permission, removing this or other copyright notices, and/or infringing related rights could make you liable to severe civil or criminal penalties.
Text copyright © Chris Woodford 2006, 2018. All rights reserved.
More to explore on our website...
